Vane Pump Working Principle and Applications

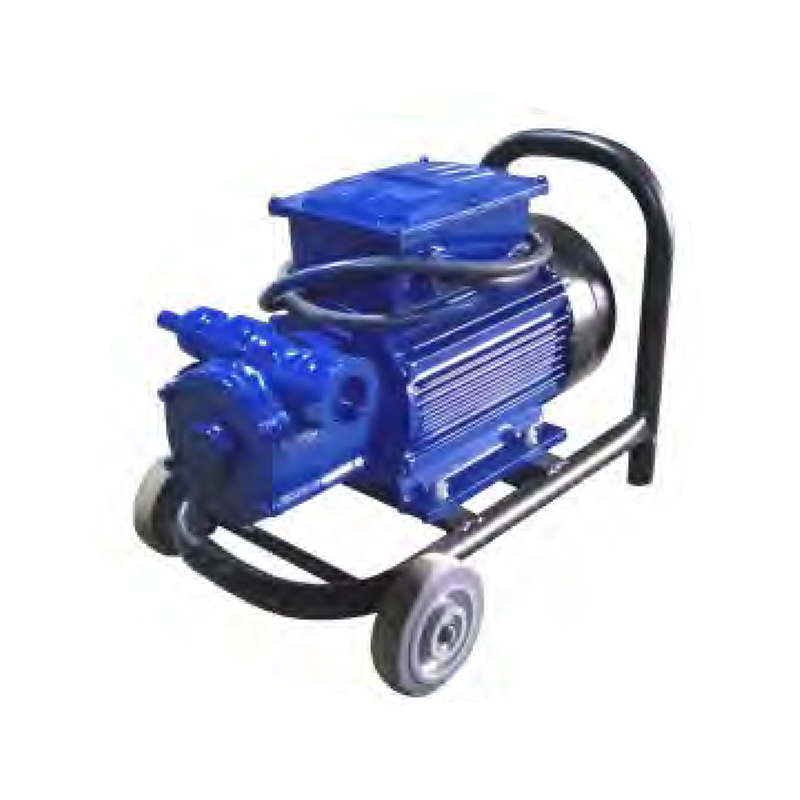

Introduction to Vane Pumps
Vane pumps are a type of positive displacement pump widely used in industrial and mobile applications. They operate by using a series of sliding vanes mounted on a rotor, which rotate inside a cam ring or housing. This action generates a suction and discharge effect that moves fluids efficiently. Vane pumps are known for their smooth, pulsation-free flow, reliability, and capability to handle a variety of fluid viscosities.
Key industries utilizing vane pumps include:
Working Principle of Vane Pumps
Rotor and Vane Mechanism
The core of a vane pump consists of a rotor, vanes, and cam ring. As the rotor rotates:
The vanes slide outward due to centrifugal force or spring mechanisms.
The expanding volume on the suction side draws fluid into the pump chamber.
As the rotor continues to turn, the vanes retract, compressing the fluid and pushing it out through the discharge port.
This continuous expansion and contraction of volume allows the vane pump to provide consistent flow and pressure.
Types of Vane Pumps
Fixed Vane Pumps: Maintain a fixed displacement per rotation; ideal for applications requiring steady flow.
Variable Vane Pumps: Allow adjustment of flow or pressure, commonly used in hydraulic systems where load conditions vary.
Advantages
Smooth, low-pulsation flow
Compact and lightweight design
Capable of handling medium-viscosity fluids
High efficiency and energy-saving operation
Applications of Vane Pumps
Industrial Applications
Chemical Industry: Pumping corrosive liquids, acids, and solvents.
Hydraulic Systems: Driving actuators and motors with consistent flow.
Food and Beverage: Transfer of oils, syrups, and other viscous liquids.
Automotive: Fuel injection systems and lubrication circuits.
Mobile Applications
Agricultural machinery
Construction equipment
Mobile hydraulic systems
Specialized Applications
Installation Guidelines for Vane Pumps
Proper installation ensures optimal performance and long service life. Follow these steps:
Mounting Surface: Ensure the pump is mounted on a rigid, vibration-free base.
Alignment: Check shaft alignment with the driving motor to prevent premature wear.
Piping Connections: Connect inlet and discharge pipes with proper support to avoid stress on the pump casing.
Lubrication: Fill the pump with recommended lubricants before start-up.
Priming: Prime the pump to remove air from the system before operation.
Quick Installation Checklist
| Step | Action | Notes |
|---|
| 1 | Mounting | Secure on stable foundation |
| 2 | Alignment | Use dial gauge or laser alignment |
| 3 | Piping | Avoid sharp bends or excessive length |
| 4 | Lubrication | Use manufacturer-recommended oil |
| 5 | Testing | Run dry for 1-2 minutes with minimal load |
Maintenance and Care
Routine Maintenance
Inspect vanes for wear and replace if necessary.
Check cam ring and rotor surfaces for scratches or damage.
Monitor pump noise and vibration to detect early issues.
Verify pressure and flow rates match operational requirements.
Maintenance Schedule
| Interval | Task |
|---|
| Daily | Check oil level, listen for abnormal noise |
| Weekly | Inspect connections and seals |
| Monthly | Clean filter screens and strainers |
| Quarterly | Check vanes, rotor, and cam ring for wear |
| Annually | Full pump overhaul and replacement of worn components |
Common Maintenance Tips
Use clean fluids to prevent contamination.
Avoid running the pump dry for extended periods.
Ensure proper storage conditions when the pump is idle.
Troubleshooting Common Issues
| Problem | Possible Cause | Solution |
|---|
| Low Flow | Clogged inlet or suction line | Clean or replace filters |
| High Noise | Worn vanes or rotor | Inspect and replace damaged parts |
| Leakage | Damaged seals or gaskets | Replace seals |
| Overheating | Insufficient lubrication | Add proper lubricants, check viscosity |
| Pressure Drop | Incorrect installation or cavitation | Re-align pump, adjust inlet pressure |
Energy Efficiency and Best Practices
Vane pumps are energy-efficient when operated within their design parameters. To enhance performance:
Select the correct pump size for your application.
Maintain optimal operating pressure and temperature.
Minimize unnecessary throttling of flow.
Regularly monitor pump efficiency and perform preventive maintenance.
Environmental Considerations
Use environmentally safe lubricants.
Ensure proper disposal of worn vanes and oils.
Consider pump designs that reduce leakage and noise.
Conclusion
Vane pumps are versatile and reliable solutions for industrial and mobile fluid handling applications. Understanding their working principle, proper installation, routine maintenance, and troubleshooting methods ensures long-lasting performance and efficiency. By adhering to maintenance schedules and operational guidelines, vane pumps can provide years of reliable service in chemical, hydraulic, automotive, and other industrial applications.
