1. Product introduction
FB stainless steel
corrosion-resistant chemical pump is applicable to medium without solid
particles, with medium temperature of O ℃~120 ℃ and inlet pressure of no
more than 2kg/cm ²。 AFB stainless steel corrosion-resistant centrifugal
pumps are improved and designed on the basis of F type
corrosion-resistant pumps. They all use a new type of auxiliary impeller
power shaft seal device, which is a single-stage single suction
cantilever corrosion-resistant centrifugal pump.

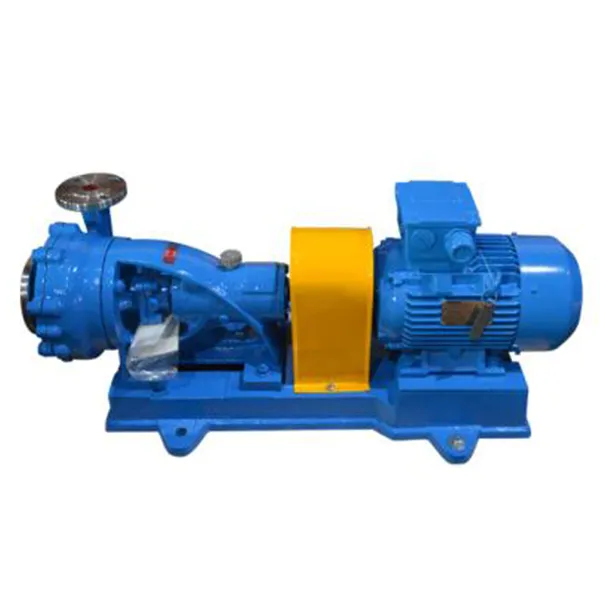

2. Product pictures
3. Scope of application
FB stainless steel
corrosion-resistant chemical pumps are widely used in chemical,
petroleum, metallurgy, light industry, synthetic fiber, environmental
protection, food, medicine and other departments. This kind of product
has the advantages of stable and reliable performance, good sealing
performance, beautiful appearance, convenient use and maintenance, etc.
It plays a great role in improving product quality, reducing leakage,
emission, dripping and pollution.
4. Product Features
It
adopts advanced hydraulic model, novel structure and high-strength
combined single and double end mechanical seal, which has the advantages
of high efficiency, energy saving, compact structure, stable
performance and reliable use.

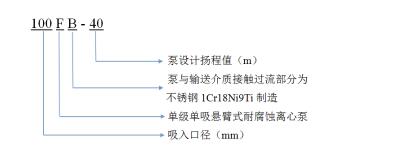

5. Model Meaning

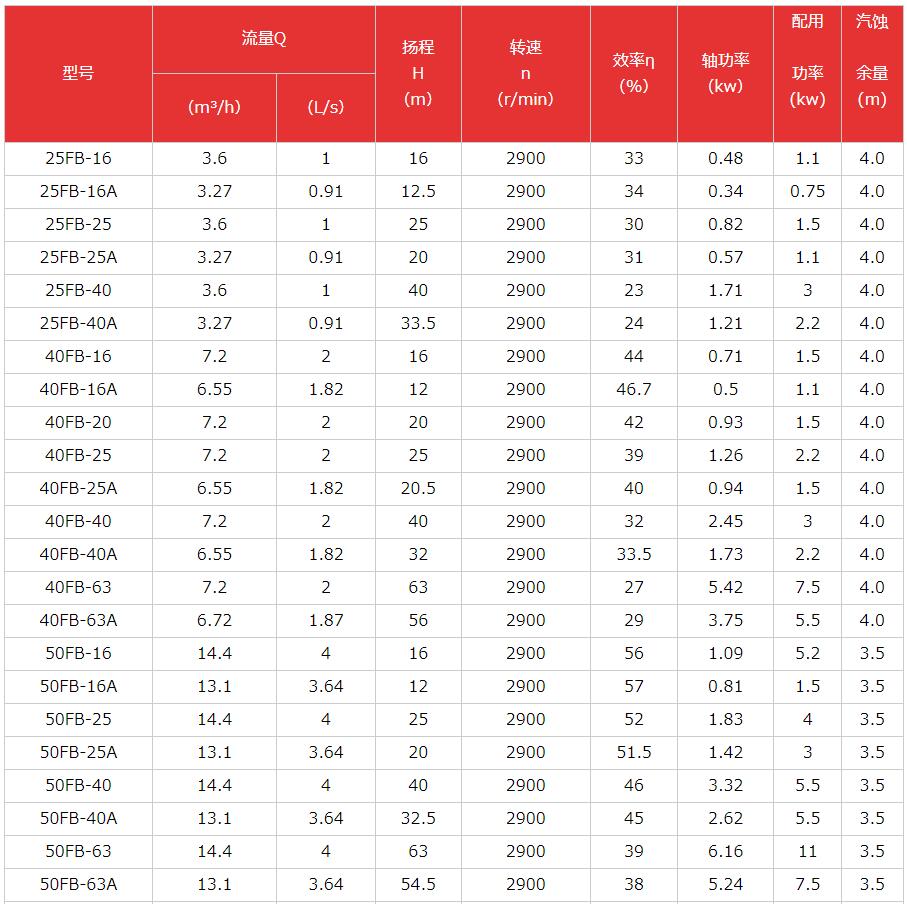

6. Specifications
7. Installation method
(1) The pump shall be
installed and fixed on a stable foundation. It is better to lay a
cushion between the base and the foundation. Ensure that the pump will
not affect the vibration of the pipeline when it is started. The pump is
not affected by other mechanical vibration.
(2) When installing
the pipeline, it shall be noted that the inlet and outlet pipelines of
the pump shall not exert force on the pump and shall be equipped with
corresponding supports.
(3) Valves shall be installed on the inlet
and outlet pipelines of the pump when the pump is installed under the
condition of reverse flow, and it is better to install pipeline
compensator. When the pump is under suction working condition, it is
required to install valves at the inlet and outlet of the pump.
(4)
Sufficient maintenance space shall be reserved for the pump during
installation to facilitate equipment maintenance in the later period.
8. Precautions
(1) Before using the pump, each fastener of the pump should be checked.
(2) The rotation direction of the pump during operation shall conform to the requirements.
(3) The pump chamber can only be started when it is full of liquid. Do not dry burn and idle.
9. Frequently Asked Questions
(1) If the pump does not discharge water, check whether the pump reverses and whether the water inlet pipe leaks.
(2) Insufficient flow may cause the suction pipe diameter to be too small or the sealing ring to be severely worn.
(3) If the lift is too low, check whether the speed becomes slow or the flow is too large.
10. Need to know
(1) Starting:
a. Prepare necessary wrenches and tools
b. Check whether the lubricating grease in the oil cup of the sealing device is filled
c.
Check whether the rotation direction of the pump is correct. Reverse
rotation is strictly prohibited. Wrong rotation can loosen the impeller
nut, which may lead to corrosion when the corrosive medium enters the
shaft diameter, causing the pump to fail to work, and may also lead to
an unfortunate accident when the impeller nut is thrown out. Before
starting the pump, the coupling must be covered to ensure safe
production.
d. After starting the motor, slowly open the gate
valve at the outlet to make the pump work normally, and then open the
valve to the required level
(2) Stop:
a. Close the gate valve of the pressure pipeline
b. Stop the motor
c. Close the gate valve of suction pipeline
d. Drain the liquid in the pump when the ambient temperature is lower than the freezing point of the liquid
e.
If the pump is out of service for a long time, the corrosive medium in
the pump shall be discharged and washed with clean water. After
cleaning, it shall be kept properly
FB Stainless Steel Corrosion Resistant Pump
The FB Stainless Steel Corrosion Resistant Pump is engineered for high-efficiency fluid handling in demanding industrial environments. Designed with premium materials and precise engineering, this pump delivers exceptional corrosion resistance, durability, and energy efficiency. It is widely applied across chemical, pharmaceutical, petrochemical, and water treatment industries.
H2: Overview of FB Stainless Steel Corrosion Resistant Pump
The FB pump is built with high-grade stainless steel, offering superior resistance to chemical corrosion and abrasive liquids. Its robust structure ensures minimal downtime and long-term operational stability, reducing maintenance costs and improving overall plant efficiency.
Key Features Include:
Corrosion-resistant stainless steel construction for prolonged service life
High-efficiency impeller design for optimal energy utilization
Low maintenance and user-friendly operation
Compatibility with aggressive and abrasive fluids
H2: Applications
The FB Stainless Steel Corrosion Resistant Pump is suitable for various industrial applications, including:
Chemical processing: For handling acids, alkalis, and solvents
Water treatment: For circulation of treated and raw water
Petrochemical industries: For pumping fuels, oils, and chemical intermediates
Pharmaceutical production: Ensures contamination-free fluid transfer
H2: Technical Specifications
| Parameter | Specification |
|---|
| Material | Stainless Steel 316/304 |
| Flow Rate | 1–200 m³/h |
| Head | 10–80 m |
| Operating Temperature | -20°C to 120°C |
| Maximum Pressure | 10 bar |
| Motor Power | 0.75–22 kW |
| Protection Level | IP55 |
H3: Design Advantages
Seamless stainless steel construction: Eliminates weak points prone to corrosion
Precision-balanced impellers: Reduce vibration and wear
Compact footprint: Facilitates installation in limited spaces
H2: Inspection and Testing Standards
Ensuring reliability and safety, the FB pump adheres to strict inspection protocols:
ISO 9001 Certified Manufacturing: Quality control at every production stage
Hydraulic Performance Testing: Confirms flow rate, head, and efficiency
Pressure and Leak Testing: Ensures no fluid leakage under rated conditions
Material Verification: Stainless steel composition tested for corrosion resistance
Regular inspections are recommended to maintain optimal performance and compliance with safety regulations.
H2: Maintenance and Service
H3: Maintenance Frequency
Daily Checks: Monitor vibration, noise, and leakage
Monthly Maintenance: Inspect mechanical seals, bearings, and impellers
Quarterly Service: Lubricate moving parts, tighten bolts, and verify alignment
Annual Overhaul: Comprehensive inspection, replacement of worn parts, and performance recalibration
H3: Recommended Practices
Use only compatible fluids to avoid premature corrosion
Avoid dry running, which can damage seals and impellers
Maintain proper suction and discharge conditions
Record operational parameters to detect anomalies early
H3: Technical Support
FB pumps come with dedicated technical assistance, including:
On-site installation guidance
Troubleshooting support
Spare parts supply and replacement
Customized maintenance plans
H2: User Feedback
Customers worldwide praise the FB pump for:
Durability: Long-lasting performance in harsh chemical environments
Low maintenance cost: Reduced downtime and service intervals
High efficiency: Energy-saving performance reduces operational costs
Ease of installation: Compact design and straightforward operation
Case Study Example:
A pharmaceutical company reported 30% energy savings and zero leakage issues after replacing conventional pumps with FB stainless steel corrosion-resistant pumps.
H2: Safety Considerations
Ensure proper grounding to prevent electrical hazards
Operate within the designed temperature and pressure limits
Use protective equipment when handling corrosive fluids
Regularly inspect mechanical seals to prevent leaks
H2: Conclusion
The FB Stainless Steel Corrosion Resistant Pump represents a reliable, efficient, and durable solution for industries that demand high chemical resistance and long operational life. By combining advanced engineering, superior materials, and comprehensive technical support, this pump ensures safe, efficient, and sustainable fluid transfer in diverse industrial applications.
