1. Product introduction
IH stainless steel
chemical pump (i.e. IH chemical pump) is a single-stage single suction
cantilever centrifugal pump, designed according to the international
standard ISO2858 and manufactured according to the international
standard ISO5199/DIS. Compared with the old product, its technical
indicators increase the efficiency by about 5% on average and reduce the
NPSH by about 2m. It is an energy saving and efficient product with
stable performance and standardized size of parts, It is a new
energy-saving product determined by the Ministry of Machinery Industry
to replace the old corrosion resistant pump and import., It has the
characteristics of wide performance range, high efficiency, high level
of "three modernizations" and convenient maintenance. Its efficiency is
5% higher than that of F type pump on average. It is an energy-saving
product promoted by the country. It is used to transport liquids that do
not contain solid particles, are corrosive and have viscosity similar
to water.

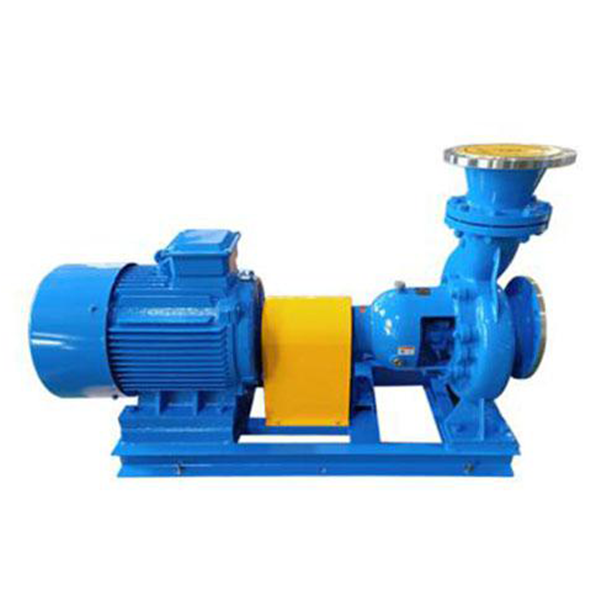

2. Product pictures
3. Scope of application
The conveying medium
temperature of IH stainless steel chemical pump (i.e. IH chemical pump)
is - 20 ℃~105 ℃. If necessary, double end sealing cooling device is
used, and the conveying medium temperature is below 300 ℃. IH stainless
steel chemical pump is applicable to chemical, petroleum, metallurgy,
electric power, paper making, food, pharmaceutical, environmental
protection, wastewater treatment, synthetic fiber and other industries
to transport various corrosive or non polluting media similar to water.
4. Product Features
1.
High efficiency and energy saving: IH chemical pump is 5% more
efficient than F type, which is an ideal energy-saving product;
2. Shaft seal: the shaft seal is a packing or mechanical seal, and the two types of seal pump covers can be used universally;
3. Suspension components: suspension components are designed in a universal way, with high universality and reliability.
4.
Material: The main flow passage parts are made of stainless steel,
which can meet the transportation of different media and have a long
service life.
5. Fully sealed shaft: shaft sleeve, split cap,
sealing gasket and "O" ring seal are used on the shaft to ensure that
the shaft does not contact the medium and improve the service life of
the shaft. Universal design is adopted with high degree of
generalization.

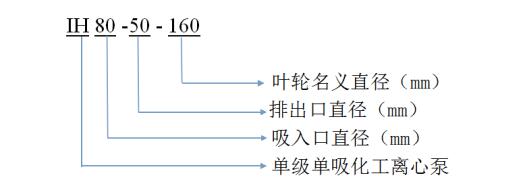

5. Model Meaning

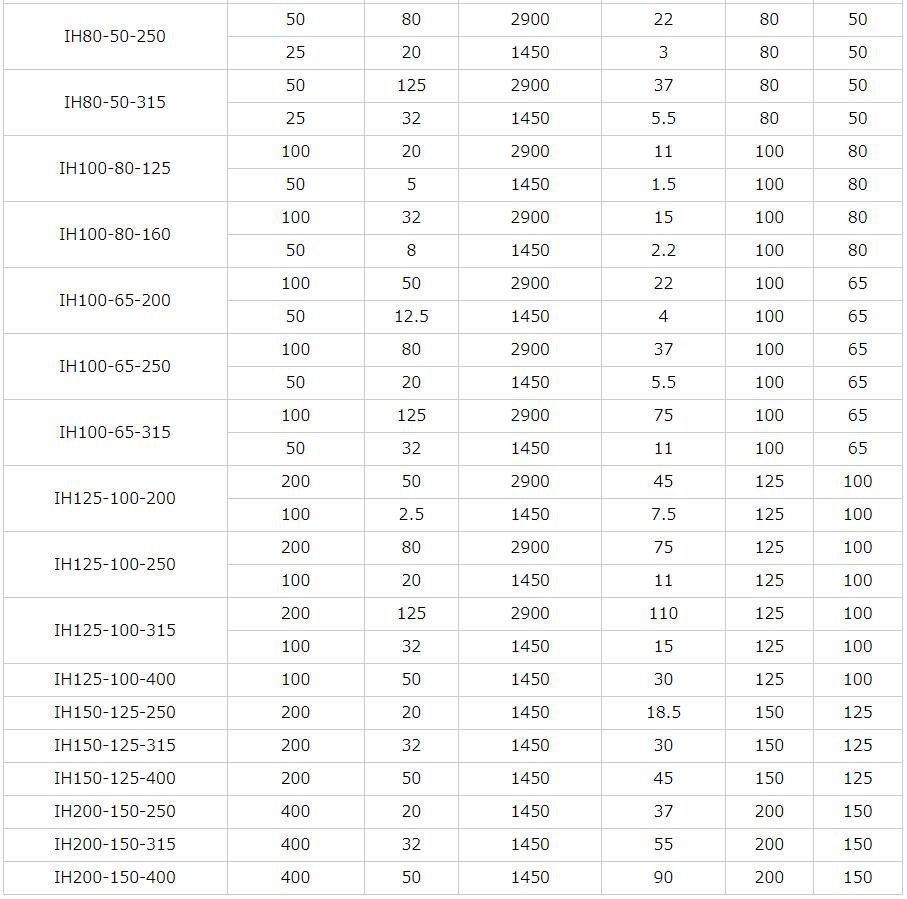

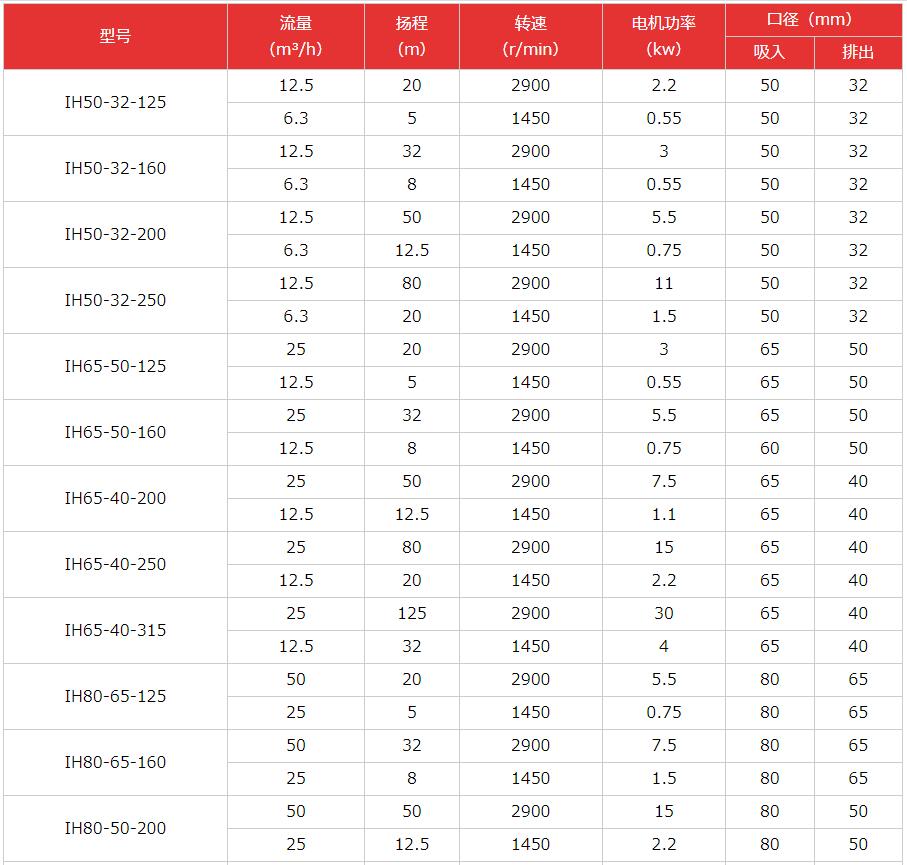

6. Specifications
IH Stainless Steel chemical centrifugal pump: Reliable Industrial Fluid Handling Solution
The IH stainless steel chemical centrifugal pump is an advanced, durable, and high-efficiency solution for industrial fluid transfer, particularly in chemical, pharmaceutical, and water treatment applications. Constructed with premium stainless steel, it ensures excellent corrosion resistance, long service life, and reliable operation in demanding environments.
H2: Product Overview
The IH stainless steel chemical centrifugal pump is designed for handling aggressive chemicals, corrosive liquids, and industrial fluids. Its centrifugal mechanism allows for smooth and stable flow, energy-efficient operation, and minimal maintenance requirements. With a variety of models and specifications, it can meet the requirements of small-scale operations as well as large industrial systems.
H3: Key Features
High-Quality Stainless Steel Construction: Ensures corrosion resistance and durability.
Centrifugal Pump Design: Provides stable flow and energy efficiency.
Versatile Applications: Suitable for chemical plants, water treatment facilities, and industrial processing systems.
Low Maintenance: Easy to clean and maintain, reducing downtime.
Safety and Reliability: Designed for safe handling of aggressive chemicals.
H2: Components and Accessories
Understanding the components of the IH stainless steel chemical centrifugal pump is essential for proper operation and maintenance.
| Component | Description | Material |
|---|
| Pump Casing | Encloses the impeller and directs flow | Stainless Steel |
| Impeller | Rotating component that moves the fluid | Stainless Steel |
| Mechanical Seal | Prevents leakage | Carbon/Ceramic or SiC |
| Bearing Assembly | Supports the pump shaft | High-precision steel |
| Motor | Drives the pump | AC Motor (optional explosion-proof) |
| Suction & Discharge Flanges | Connect pump to piping system | Stainless Steel |
H3: Optional Accessories
Explosion-proof motor for hazardous environments.
Vibration dampers for quieter operation.
Pressure and flow sensors for real-time monitoring.
Baseplate and coupling kits for easy installation.
H2: Usage Recommendations
For optimal performance and long-term reliability, follow these guidelines:
H3: Installation Guidelines
Install on a stable, vibration-free foundation.
Ensure proper alignment of pump and motor shaft.
Connect suction and discharge piping with minimal bends.
Fill the pump casing with fluid before first start-up.
Use compatible fluids according to the material specifications.
H3: Operational Tips
Start the pump with no-load condition if possible.
Avoid dry running to prevent damage to the mechanical seal.
Monitor temperature, pressure, and flow rates during operation.
Use soft-start motors to reduce electrical and mechanical stress.
H3: Safety Precautions
Wear protective gloves and goggles when handling chemicals.
Ensure proper grounding for electrical safety.
Avoid pumping explosive or flammable fluids unless the pump is explosion-proof rated.
Check for leaks regularly and replace worn components immediately.
H2: Product Certifications
The IH stainless steel chemical centrifugal pump meets several international standards for safety, performance, and quality:
ISO 9001 Certification: Quality management system compliance.
CE Marking: Conforms to European safety and environmental regulations.
ATEX Certification (optional): Explosion-proof design for hazardous areas.
RoHS Compliance: Environmental protection and material safety.
These certifications guarantee that the pump is reliable, safe, and suitable for international industrial applications.
H2: Maintenance Guidelines
Proper maintenance is essential to extend the lifespan of the pump and ensure consistent performance.
H3: Routine Maintenance Schedule
| Interval | Task |
|---|
| Daily | Check for leaks, unusual noises, and vibration |
| Weekly | Inspect mechanical seals and bearings |
| Monthly | Lubricate bearings if applicable, check motor alignment |
| Quarterly | Inspect impeller and casing for wear, clean filters |
| Annually | Full inspection, replace worn parts, perform performance test |
H3: Cleaning Procedures
Flush the pump with clean water or compatible cleaning solution.
Remove deposits from the impeller and casing.
Check mechanical seal integrity.
Ensure no chemical residues remain in the system before storing the pump.
H3: Spare Parts Replacement
Mechanical seals should be replaced every 12–18 months or sooner if leaking.
Bearings require periodic lubrication or replacement depending on load and operational hours.
Impellers and casings should be inspected for corrosion or wear and replaced if necessary.
H2: Benefits and Advantages
The IH stainless steel chemical centrifugal pump provides numerous benefits:
Corrosion Resistance: Handles aggressive chemicals without damage.
Energy Efficiency: Low power consumption with high flow rates.
Long Service Life: Stainless steel construction minimizes wear and corrosion.
Versatility: Suitable for multiple industrial applications.
Low Maintenance Costs: Easy to inspect, clean, and replace components.
H2: Applications
This pump is widely used in:
Chemical Industry: Transfer of acids, alkalis, and solvents.
Pharmaceutical Industry: Circulation of clean fluids in production lines.
Water Treatment Plants: Handling of treated and raw water.
Food & Beverage Industry: Pumping non-toxic chemical additives safely.
Industrial Manufacturing: Cooling systems, chemical processing, and industrial fluid transfer.
H2: Conclusion
The IH stainless steel chemical centrifugal pump is a highly reliable, durable, and versatile solution for demanding industrial fluid handling applications. With its stainless steel construction, corrosion resistance, energy-efficient design, and ease of maintenance, it is a cost-effective and long-lasting choice for chemical plants, water treatment facilities, and industrial operations worldwide. Proper installation, operation, and maintenance will ensure peak performance and extended service life, making it an essential investment for any facility handling aggressive chemicals or corrosive fluids.
