For diesel oil, kerosene, gasoline, benzene and other clean, light oily liquid.
Vane pump,large output with small power input.
Cast iron pump casing, teflon vanes, electric motor or diesel engine driven for option.
Bypass valve built.
Quick coupling connection on inlet/outlet side.
Max liquid temperature up to 100℃
Continuous working.
Strong self-priming, it's not necessary to pour oil before pump working.
Trailer type design, moveable, easy to use and maintenance.
The copper impeller should be selected for the transport of solvents such as xylene.
Optional LC flow meter or OGM flow meter.
| Technical Specification |
Model | Size(mm) | Flow(m³/h) | Head(m) | Suction(m) | Power(Kw) | Speed(rpm） | Voltage(V) |
KYB25-9-30
| 25 | 9 | 30 | 7 | 1.1
| 1450
| 380/220 |
KYB40-15-30
| 40
| 20 | 30 | 7 | 1.5
| 1450 | 380/220 |
| KYB40-20-30 | 40 | 20
| 30 | 7 | 2.2
| 1450 | 380/220 |
| KYB50-25-25 | 50 | 25 | 25 | 7 | 3 | 1450 | 380/220 |
| KYB65-35-20 | 65
| 35 | 20 | 7 | 4 | 1450 | 380 |
KYB80-45-20
| 80 | 45
| 20
| 7 | 5.5 | 1450 | 380 |
| KYB100-60-20 | 100 | 60 | 20 | 7 | 7.5 | 1450 | 380 |

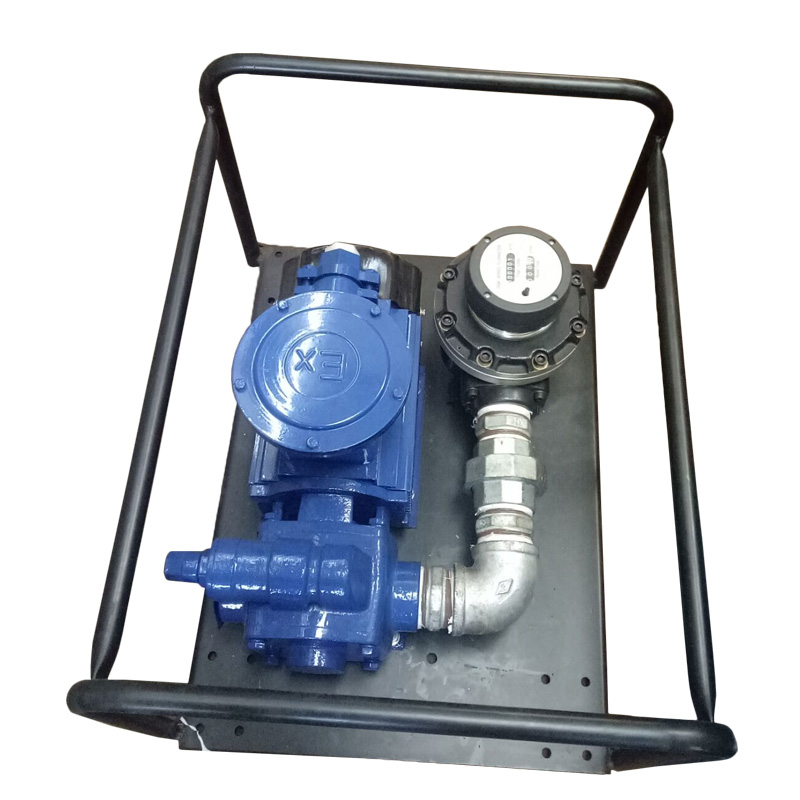

KYB One Inch OGM Flowmeter 1.1KW Single Phase Explosion-Proof: Complete Technical Overview
Introduction
The KYB One Inch OGM Flowmeter 1.1KW Single Phase Explosion-Proof is a high-precision industrial flow measurement solution designed for safe, reliable, and efficient operation in hazardous environments.
With a 1.1KW single-phase motor and certified explosion-proof design, this flowmeter delivers accurate fluid monitoring, robust performance, and energy-efficient operation. It is ideal for chemical plants, oil and gas pipelines, industrial fluid systems, and other applications requiring precise flow measurement under hazardous conditions.
This guide explores core advantages, technical advantages, energy efficiency standards, and main functions, providing engineers, operators, and procurement specialists with comprehensive insights into installation, operation, and maintenance best practices.
Core Advantages
Safety and Compliance
Certified for hazardous zones, preventing sparks from igniting flammable substances.
Fully compliant with international explosion-proof standards.
Designed for operation in chemical, petroleum, and industrial processing environments.
High-Precision Flow Measurement
Delivers accurate and reliable readings even under variable flow conditions.
Optimized for industrial fluid monitoring, ensuring process stability.
Supports data-driven decision-making for operational efficiency.
Durability and Longevity
Constructed with stainless steel and corrosion-resistant alloys.
Resistant to wear, vibration, and harsh environmental conditions.
Modular components allow easy maintenance and long-term reliability.
Energy Efficiency
Optimized 1.1KW motor reduces energy consumption while maintaining performance.
Low operational power requirement reduces overall operational costs.
Designed to meet industrial energy-saving regulations.
Technical Advantages
| Feature | Description | Benefit |
|---|
| Explosion-Proof Housing | Stainless steel, sealed design | Safe operation in hazardous areas |
| High-Precision OGM Sensor | Measures fluid flow accurately | Reliable process control |
| 1.1KW Single-Phase Motor | Stable, continuous operation | Efficient energy usage |
| Modular Components | Easy replacement and maintenance | Minimizes downtime |
| Corrosion-Resistant Materials | Alloys and seals | Long-term durability and reliability |
| Compact Design | Fits 1-inch pipelines | Flexible installation in tight spaces |
Tip: The modular design enables quick replacement of sensors, bearings, and seals, reducing downtime and operational costs.
Energy Efficiency Standards
The KYB One Inch OGM Flowmeter adheres to international energy efficiency standards and incorporates design optimizations to reduce power consumption while maintaining performance:
Motor Optimization – 1.1KW motor designed for low-loss operation.
Flow-Optimized Sensor Design – Minimizes pressure drop while maintaining accuracy.
Low Friction Components – Bearings and seals reduce energy waste.
Continuous Monitoring – Energy-efficient operation by adjusting motor speed according to flow demand.
Industrial Benefits: Reduced electricity consumption, lower operational costs, and compliance with green manufacturing policies.
Main Functions
Precise Flow Measurement
Explosion-Proof Operation
Certified for hazardous locations, protecting against spark and ignition.
Ensures safe use in chemical and petroleum industries.
Energy Monitoring and Efficiency
Data Integration and Display
Durability and Reliability
Resistant to corrosion, vibration, and wear.
Designed for long-term operation with minimal maintenance.
Maintenance Recommendations
Routine Maintenance
| Task | Frequency | Action |
|---|
| External Cleaning | Daily | Wipe down housing and control panel |
| Sensor Inspection | Monthly | Clean and calibrate sensor for accuracy |
| Motor Lubrication | Every 500 hours | Lubricate bearings as per manual |
| Electrical Connections | Quarterly | Inspect for corrosion or loose connections |
| Calibration | Every 6 months | Verify accuracy with reference flow standards |
Tip: Always disconnect power and relieve system pressure before performing maintenance.
Suitable Application Areas
The KYB One Inch OGM Flowmeter is widely used across multiple industries:
Chemical Processing – Measuring acids, bases, and solvents in hazardous zones.
Oil & Gas – Monitoring petroleum, fuel, and natural gas pipelines.
Water Treatment – Flow measurement in clean and wastewater systems.
Industrial Fluid Systems – Lubrication, cooling, and processing pipelines.
Hazardous Environments – Any area requiring explosion-proof compliance.
Safety Guidelines
Read the Operation Manual – Understand all safety and operational procedures before installation.
Use Personal Protective Equipment (PPE) – Gloves, goggles, and ear protection are recommended.
Electrical Safety – Ensure proper grounding and compliance with explosion-proof wiring standards.
Operational Safety – Monitor for noise, vibration, or unusual readings and stop operation immediately if issues arise.
Installation Safety – Align the flowmeter correctly to avoid sensor errors and mechanical stress.
Cleaning and Care Instructions
Daily Cleaning: Wipe housing and display panel.
Periodic Cleaning: Clean sensor elements and motor cooling fins monthly.
Chemical Cleaning: Use mild detergents; avoid aggressive chemicals.
Inspection: Check seals and bearings for wear and replace if needed.
SEO-Optimized Product Description (Meta)
The KYB One Inch OGM Flowmeter 1.1KW Single Phase Explosion-Proof is a precision industrial flow measurement device for hazardous environments, featuring a 1.1KW single-phase motor, explosion-proof certification, and robust stainless steel construction. Ideal for chemical plants, oil and gas pipelines, and industrial fluid systems, it provides accurate measurement, energy-efficient operation, and long-term durability.
Conclusion
The KYB One Inch OGM Flowmeter 1.1KW Single Phase Explosion-Proof offers a reliable, precise, and energy-efficient solution for industrial flow measurement. With advanced technical design, explosion-proof safety, and robust materials, it ensures long-term operational efficiency and low maintenance.
By following maintenance schedules, safety procedures, and calibration practices, this flowmeter becomes an essential tool for engineers and operators seeking accurate, safe, and reliable flow measurement in hazardous industrial environments.
