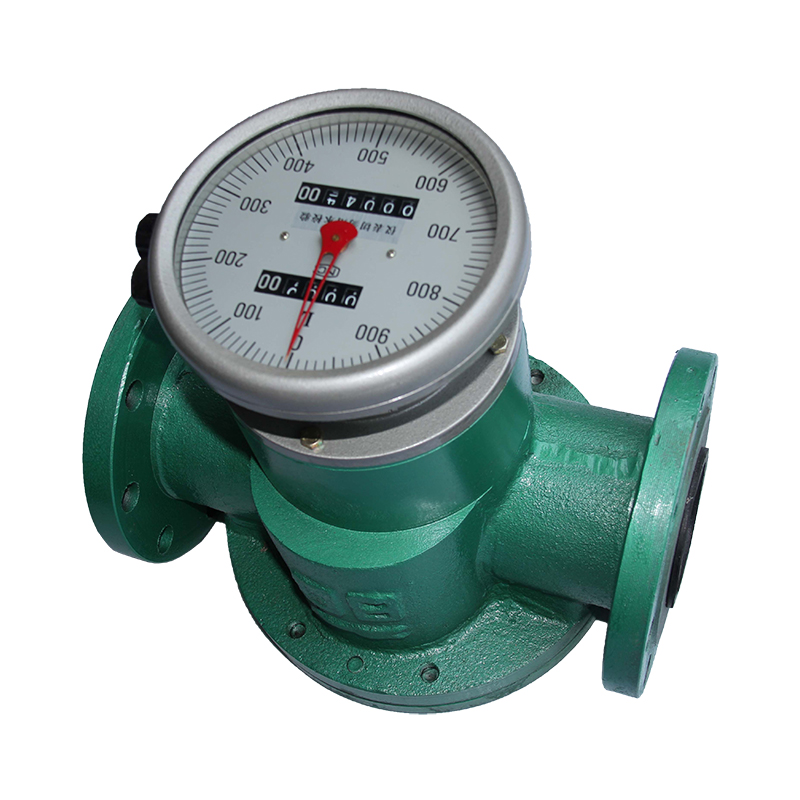

LC Oval Gear Flow Meter: Comprehensive Product Guide
Introduction to LC Oval Gear Flow Meter
The LC Oval Gear Flow Meter is a high-precision volumetric flow meter designed for accurate measurement of liquids across a variety of industrial and commercial applications. Utilizing oval gear technology, it measures flow by the displacement of fluid between rotating gears, delivering precise, reliable, and repeatable readings regardless of fluid viscosity or temperature.
Widely used in fuel distribution, chemical processing, lubrication systems, and high-viscosity liquid transfer, the LC Oval Gear Flow Meter offers a combination of durability, accuracy, and ease of maintenance. Its robust construction and global compliance standards make it a trusted solution for businesses seeking dependable flow measurement solutions.
Working Principle of LC Oval Gear Flow Meter
The meter operates on a positive displacement principle. The internal oval gears rotate as fluid passes through the chamber, creating a known volume per rotation. Sensors detect the rotation of the gears and convert it into an electronic or mechanical output that corresponds to the fluid flow rate.
Advantages of oval gear technology include:
High accuracy even with viscous liquids
Minimal sensitivity to fluid density and temperature changes
Reliable measurement at low and high flow rates
Compact and robust design suitable for industrial environments

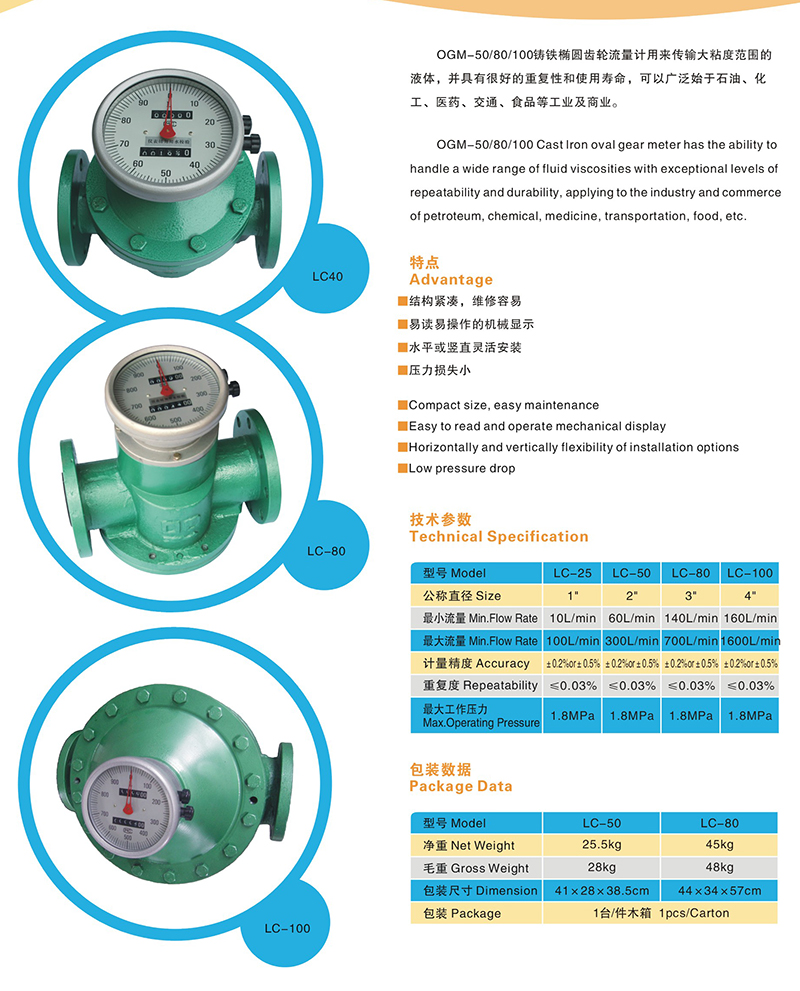

Technical Specifications
| Parameter | Details (Typical Values) |
|---|
| Product Model | LC Oval Gear Flow Meter |
| Measurement Principle | Positive displacement / Oval gear |
| Accuracy | ±0.2% – ±0.5% |
| Flow Range | 0.5 – 500 L/min (varies by model) |
| Pressure Rating | Up to 40 bar |
| Viscosity Handling | Up to 100,000 cP |
| Operating Temperature | -20°C to 120°C |
| Connection Type | Flanged / Threaded / Tri-clamp |
| Material of Construction | Stainless steel / Aluminum |
| Output Options | Pulse / 4–20mA / Digital display |
| Standard Compliance | ISO, CE, ATEX (optional) |
Applicable Industries and Use Cases
The LC Oval Gear Flow Meter is suitable for a wide range of liquids and industries:
1. Fuel and Oil Industry
Accurate measurement of gasoline, diesel, lubricants, and fuel oils
Custody transfer applications
Monitoring fuel consumption in storage tanks and pipelines
2. Chemical Industry
Precise dosing of acids, solvents, and other chemicals
Compatible with high-viscosity, corrosive, or abrasive liquids
Integration with automated process control systems
3. Food and Beverage
Measurement of syrups, edible oils, and liquid ingredients
Sanitary versions available with food-grade materials
Compliance with hygiene and safety standards
4. Industrial and Manufacturing
Monitoring lubricants in machinery
Chemical injection systems
Process automation in manufacturing plants
Fault Diagnosis and Maintenance
Proper maintenance ensures long-term accuracy and reliability. Common issues and solutions include:
1. Low or Inaccurate Flow Reading
Possible Causes: Blocked inlet or outlet, air in the line, worn gears
Solution: Clean the meter, remove air, inspect and replace worn gears
2. Leakage
3. No Output Signal
Possible Causes: Faulty sensors or wiring, electronic module failure
Solution: Check electrical connections, replace faulty sensors or electronics
4. Vibration or Noise
Possible Causes: Cavitation, high-viscosity fluid, loose installation
Solution: Ensure proper mounting, adjust flow rate, check for air bubbles
Maintenance Tips:
Inspect seals, gaskets, and bearings regularly
Calibrate meter periodically according to ISO standards
Clean internal gears to prevent buildup of viscous residues
Ensure proper lubrication for mechanical components
Technical Support and Services
Manufacturer Support
Access to technical manuals, calibration certificates, and installation guides
Remote troubleshooting and consulting services
Spare parts supply for repairs and upgrades
On-Site Services
Assistance with installation, calibration, and system integration
Routine maintenance and inspection services
Training for operational staff on correct usage and maintenance
Digital Support
Online resources including troubleshooting guides, firmware updates, and calibration tools
Dedicated customer support for flow measurement optimization and system efficiency
Inspection Standards and Compliance
The LC Oval Gear Flow Meter is manufactured and tested to comply with international inspection standards:
ISO 9001: Quality management system compliance
ISO 4064 / OIML R 117: Metering accuracy standards for liquids
CE Certification: European compliance for electrical and mechanical safety
ATEX Certification (Optional): Safe operation in hazardous areas
Custody Transfer Standards: Optional calibration for trade applications
Testing Procedures Include:
Flow calibration using certified master meters
Pressure and leakage testing under rated conditions
Vibration and environmental stress testing
Electrical signal verification for electronic output models
Advantages of LC Oval Gear Flow Meter
High Accuracy: ±0.2%–0.5% independent of fluid viscosity
Robust Construction: Stainless steel or aluminum bodies for durability
Low Maintenance: Simple design reduces downtime and operating cost
Versatile Applications: Works with fuels, oils, chemicals, and food-grade liquids
Global Compliance: Meets ISO, CE, ATEX, and custody transfer standards
Reliable Output: Pulse, analog, or digital signals for process automation
Packaging and Delivery
Packaging Details
Each meter is packaged in anti-shock foam and corrugated cartons
Wooden crates used for larger models to prevent damage
Moisture-proof wrapping to protect internal components
Clear labeling with model number, serial number, flow range, and handling instructions
Shipping and Logistics
Available via air freight, sea freight, or express courier
Export packaging complies with international shipping standards
Bulk packaging and customized pallets available for distributors
Conclusion
The LC Oval Gear Flow Meter is a high-precision, durable, and versatile flow measurement solution suitable for a wide range of liquids and industrial applications. With robust fault diagnosis protocols, technical support, maintenance guidelines, and adherence to global inspection standards, it ensures reliable, accurate, and repeatable flow measurement.
Whether for fuel management, chemical processing, food and beverage production, or industrial automation, the LC Oval Gear Flow Meter provides a trusted and cost-effective solution for businesses seeking precision, safety, and efficiency in liquid flow measurement.
