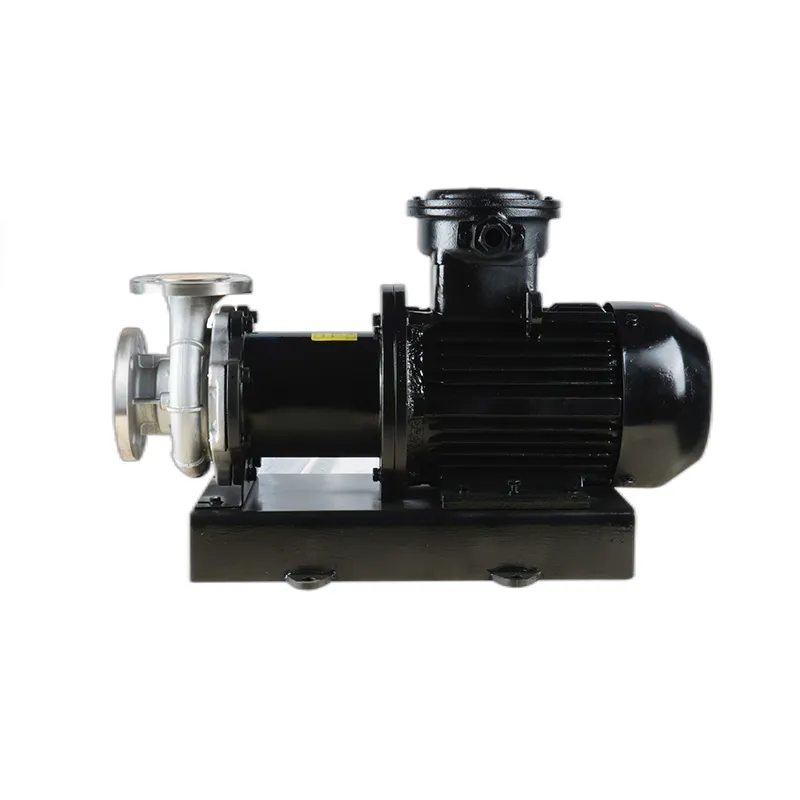

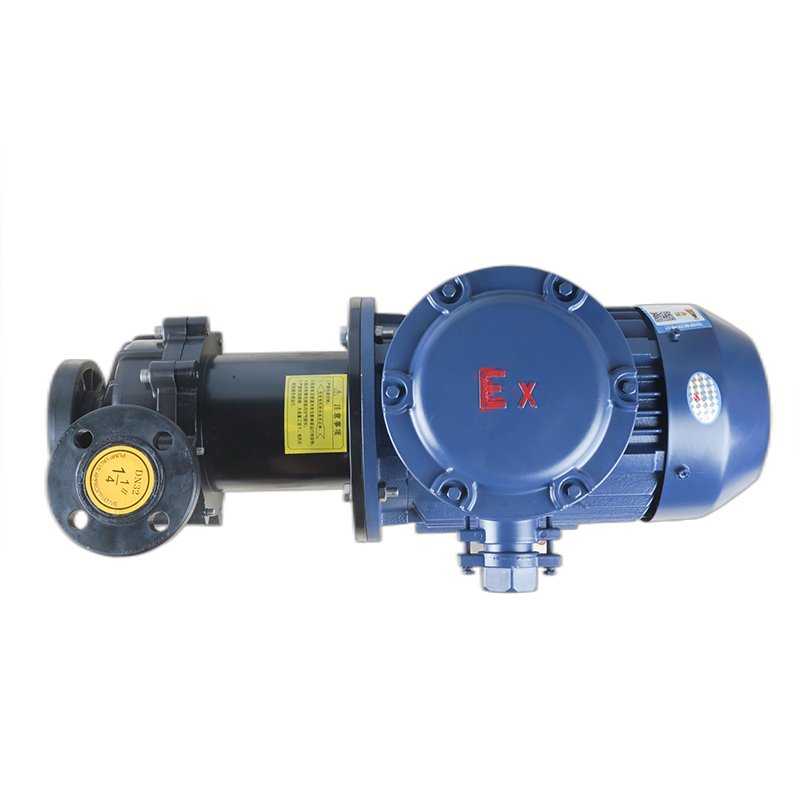

Stainless Steel Magnetic Drive centrifugal pump series
The Stainless Steel Magnetic Drive Centrifugal Pump Series is a high-performance solution designed for safe, leak-free fluid transfer in chemical, pharmaceutical, and food processing industries. Its magnetically coupled design eliminates mechanical seals, reducing maintenance and preventing hazardous fluid leaks. This guide provides an in-depth look into operational best practices, maintenance schedules, fault analysis, and quality standards, ensuring reliable performance and longevity.
H2: Overview of Magnetic Drive Centrifugal Pumps
Magnetic drive centrifugal pumps use a magnetic coupling to transfer torque from the motor to the impeller without a direct shaft connection. This design eliminates the need for conventional mechanical seals, which are often prone to leakage and require frequent replacement. Made of stainless steel, these pumps offer excellent corrosion resistance, making them suitable for aggressive chemicals, acids, and solvents.
H3: Key Features
Leak-Free Operation: Magnetic coupling removes mechanical seals, preventing fluid leakage.
Corrosion Resistance: Constructed with high-quality stainless steel for durability against aggressive fluids.
Low Maintenance: Fewer moving parts reduce downtime and service requirements.
Versatile Applications: Ideal for chemical transfer, pharmaceutical solutions, food-grade liquids, and other sensitive fluids.
H2: Usage Precautions
Proper operation is crucial to ensure longevity and efficiency. Operators should follow the recommended guidelines:
Fluid Compatibility: Ensure the pumped fluid is compatible with stainless steel and magnetic drive components.
Temperature Limits: Avoid exceeding the maximum operating temperature to prevent seal or magnetic damage.
Startup Procedures: Always prime the pump before startup. Dry running can damage the magnetic coupling.
Motor Alignment: Proper alignment is critical to avoid excessive wear on bearings and coupling.
Environmental Considerations: Install the pump in a clean, dry, and ventilated area to prevent contamination and overheating.
H2: Common Faults and Causes
Understanding common faults can help reduce downtime and improve pump reliability.
H3: Leakage Issues
Though magnetic pumps are designed for leak-free operation, improper assembly or damaged containment shells may cause leaks.
Causes: Cracked containment shell, misaligned coupling, or damaged gaskets.
Solutions: Inspect containment shell integrity, realign the magnetic coupling, and replace gaskets if necessary.
H3: Reduced Flow or Pressure
Causes: Clogged impeller, air entrainment, or excessive wear on internal components.
Solutions: Clean the pump thoroughly, ensure proper venting, and check for worn parts.
H3: Overheating
Causes: Running the pump dry, high viscosity fluids, or blocked suction lines.
Solutions: Ensure the pump is primed, reduce fluid viscosity if possible, and remove obstructions from suction piping.
H2: Maintenance Guidelines
A well-structured maintenance schedule ensures peak performance and extends pump lifespan.
H3: Routine Inspections
Check for unusual vibrations or noise.
Inspect magnetic coupling alignment.
Verify motor performance and temperature.
Ensure all connections are secure.
H3: Preventive Maintenance
Clean internal components periodically to prevent clogging.
Inspect containment shell for cracks or wear.
Replace bearings according to manufacturer recommendations.
Lubricate any moving parts as specified in the pump manual.
H3: Maintenance Frequency
| Maintenance Task | Recommended Frequency |
|---|
| Visual inspection | Weekly |
| Coupling alignment check | Monthly |
| Internal cleaning | Quarterly |
| Bearing replacement | Annually or per usage hours |
H2: Detection and Quality Standards
Magnetic drive pumps must comply with strict quality and safety standards.
H3: Detection Methods
Pressure Testing: Ensure the containment shell can withstand operational pressures.
Leak Testing: Verify zero leakage under normal operating conditions.
Magnetic Coupling Inspection: Check for magnetic strength and proper alignment.
Material Certification: Confirm stainless steel composition meets chemical resistance requirements.
H3: Compliance Standards
ISO 9001: Quality Management System
CE Certification: Conformity with EU safety regulations
ASME/ANSI standards for pressure and materials
FDA compliance for food and pharmaceutical applications
H2: Operational Tips for Longevity
Always monitor inlet and outlet pressure to prevent cavitation.
Avoid operating near the maximum temperature limit continuously.
Keep the pump and surrounding area clean to prevent contamination.
Regularly log operating hours and maintenance actions for future reference.
Use appropriate spare parts to maintain warranty and performance standards.
H2: Conclusion
The Stainless Steel Magnetic Drive Centrifugal Pump Series offers a reliable, corrosion-resistant, and low-maintenance solution for industrial fluid transfer applications. By following proper usage guidelines, understanding common faults, adhering to maintenance schedules, and complying with quality standards, operators can maximize pump efficiency, safety, and lifespan. These pumps are particularly suitable for handling hazardous, corrosive, or sensitive fluids, making them indispensable in chemical processing, pharmaceuticals, and food industries.
