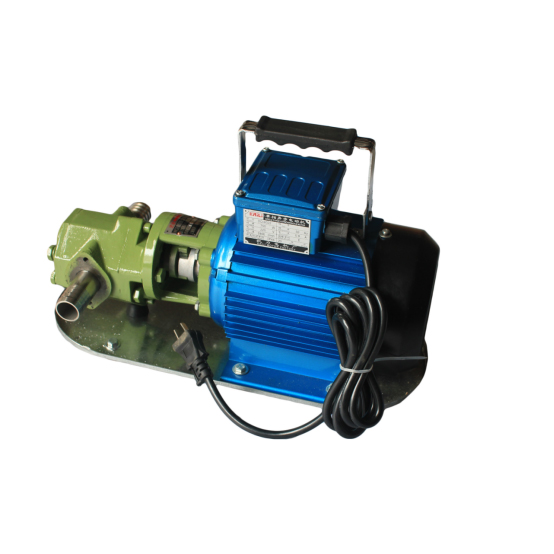

WCB explosion proof oil pump designed for gasoline, and various flammable liquid transfer, with the construction of die-cast aluminum motor casing, brass gear, viton seal, with advantage of safety and durable, high suction capacity and convenient.
Advantage
·For Gasoline, methanol, Alcohol
·220V 380V explosion proof motor
·Viton seal
·Brass gear
·National explosion proof certificate
WCB 220V Ex-Proof: Complete Technical Guide
Introduction
The WCB 220V Ex-Proof series represents industrial-grade, explosion-proof motors and equipment built with WCB stainless steel, designed for safe operation in hazardous and industrial environments. Operating at 220V, these devices combine high mechanical strength, corrosion resistance, and explosion-proof safety features, making them ideal for chemical plants, oil and gas pipelines, industrial fluid handling systems, and other hazardous applications.
This guide covers product specifications, transportation precautions, maintenance cycles, and technical indicators, providing engineers, operators, and procurement specialists with essential information for safe and efficient use.
Product Features
Explosion-proof safety: Compliant with ATEX, IECEx, and other international hazardous area standards.
Durable WCB stainless steel construction: Resistant to corrosion, wear, and high temperature.
220V operating voltage: Compatible with standard industrial power supplies.
Energy-efficient design: Optimized for minimal energy loss.
Versatile industrial applications: Chemical, petrochemical, water treatment, and industrial pipelines.
Low maintenance requirements: Detachable and service-friendly design.
Technical Indicators
| Parameter | Specification |
|---|
| Voltage | 220V AC |
| Power Range | 0.25 – 15 kW |
| Frequency | 50/60 Hz |
| Operating Temperature | -20°C to 60°C |
| Protection Level | IP55 or higher |
| Explosion-proof Grade | Ex d, Ex e, Ex n (depending on model) |
| Insulation Class | F or H |
| Efficiency | IE2 or IE3 class |
| Material | WCB stainless steel housing, stainless steel shaft |
| Bearings | High-grade ball or roller bearings |
| Seals | Mechanical or explosion-proof seals |
Notes: Parameters may vary based on model, application, and environmental requirements. Always consult the manufacturer for specific requirements.
Product Parameter Table
| Model | Power (kW) | Current (A) | Speed (RPM) | Voltage (V) | Protection | Explosion Proof |
|---|
| WCB220-0.25 | 0.25 | 1.2 | 2800 | 220 | IP55 | Ex d |
| WCB220-0.5 | 0.5 | 2.5 | 2800 | 220 | IP55 | Ex d |
| WCB220-1.0 | 1.0 | 4.5 | 2800 | 220 | IP55 | Ex e |
| WCB220-2.0 | 2.0 | 8.7 | 2800 | 220 | IP55 | Ex e |
| WCB220-5.5 | 5.5 | 15.0 | 2800 | 220 | IP55 | Ex n |
| WCB220-7.5 | 7.5 | 20.5 | 2800 | 220 | IP55 | Ex n |
| WCB220-15 | 15 | 38.0 | 2800 | 220 | IP55 | Ex d |
Note: Models are indicative; always verify compatibility with operational requirements.
Transportation Precautions
Proper handling during transportation ensures the longevity and safety of WCB 220V Ex-Proof equipment:
Packaging and Securing
Use sturdy crates or pallets with anti-vibration materials.
Ensure moisture-proof wrapping to prevent corrosion.
Secure motors and components to prevent movement during transit.
Handling
Use lifting equipment such as cranes or forklifts.
Avoid dropping, impacts, or scratches.
Protect the shaft, housing, and terminal box during handling.
Environmental Protection
Avoid exposure to rain, snow, or excessive humidity.
Prevent contact with hazardous chemicals during transportation.
Store temporarily in dry, ventilated areas before installation.
Maintenance Cycles
Routine maintenance ensures safe and efficient operation of WCB 220V Ex-Proof motors and equipment.
| Component | Maintenance Frequency | Key Actions |
|---|
| Bearings | Every 3–6 months | Lubricate with approved oil/grease, check alignment |
| Mechanical seals | Every 6–12 months | Inspect for wear or leakage, replace if necessary |
| Electrical connections | Every 6 months | Check tightness, inspect insulation, verify voltage and current |
| Housing & exterior | Monthly | Clean dust, inspect corrosion, apply protective coating if needed |
| Motor operation | Daily | Monitor temperature, vibration, noise, and load |
| Full inspection | Every 12–18 months | Inspect all components, replace worn parts, verify explosion-proof certification |
Tips: Following the maintenance schedule reduces downtime and prevents premature failure.
Fault Analysis
| Fault | Possible Cause | Solution |
|---|
| Motor fails to start | Power supply issue, blown fuse, incorrect wiring | Verify voltage, inspect wiring, reset protection devices |
| Overheating | Overload, blocked ventilation, bearing failure | Reduce load, clean ventilation, replace bearings |
| Excessive vibration | Misalignment, rotor imbalance, loose foundation | Realign shaft, balance rotor, tighten mounting bolts |
| Leakage | Damaged seal or gasket | Replace seals, inspect mating surfaces |
| Low efficiency | Cavitation, corrosion, or scaling | Clean internal components, monitor operating conditions |
Proactive monitoring of vibration, temperature, and electrical parameters can prevent most operational faults.
Operating Instructions
Installation Guidelines
Place equipment on a rigid, vibration-free foundation.
Ensure proper shaft alignment with connected equipment.
Connect electrical wiring according to explosion-proof standards.
Install grounding to prevent static electricity hazards.
Verify all protective enclosures and safety devices are properly secured.
Start-Up Procedure
Ensure all inlet/outlet valves are open if applicable.
Gradually start the motor while monitoring voltage, current, and vibration.
Confirm stable operation before applying full load.
Routine Operation
Avoid dry running to protect mechanical seals and impellers.
Maintain clean fluids to prevent scaling or corrosion.
Monitor temperature and vibration for early fault detection.
Shutdown Procedure
Close discharge or inlet valves gradually.
Turn off the motor and allow equipment to cool naturally.
Inspect for leaks, corrosion, or abnormal wear before next use.
Advantages of WCB 220V Ex-Proof
Explosion-proof safety: Suitable for hazardous industrial zones.
Durable WCB stainless steel construction: Resistant to corrosion and wear.
Reliable performance: Operates efficiently under high load and temperature.
Energy-efficient design: Reduces power consumption and operational costs.
Low maintenance requirements: Detachable design allows easy inspection and repair.
Wide industrial applicability: Chemical, petrochemical, water treatment, and pipeline systems.
SEO-Optimized Product Description (Meta)
WCB 220V Ex-Proof is a durable, explosion-proof motor and equipment series constructed with WCB stainless steel, designed for safe operation in hazardous industrial environments at 220V. Ideal for chemical, petrochemical, water treatment, and industrial fluid systems, it combines high mechanical strength, corrosion resistance, energy efficiency, and long service life while complying with ATEX, IECEx, and international safety standards.
Conclusion
The WCB 220V Ex-Proof series provides robust, corrosion-resistant, and explosion-proof solutions for hazardous industrial applications. By following proper transportation, installation, operating, and maintenance protocols, users can ensure long-term reliability and safety.
This guide equips engineers, operators, and procurement specialists with technical specifications, product parameters, transportation precautions, maintenance cycles, and operational guidance, making WCB 220V Ex-Proof a trusted choice for industrial, chemical, and oil & gas applications worldwide.
