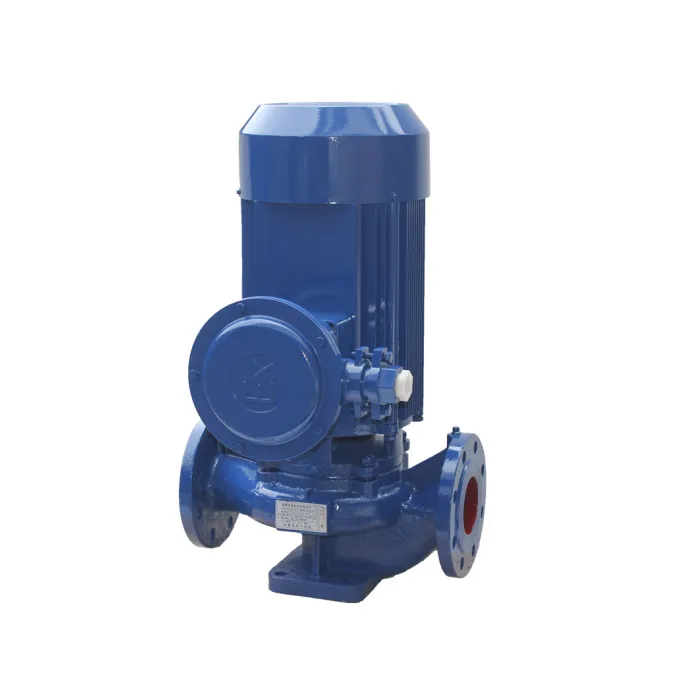

The inlet and outlet flanges of the YG explosion-proof pipeline pump
are on the same center line, which can be directly installed on the
pipeline. The vertical structure, the machine and the pump are
integrated, the floor space is small, and the installation is very
convenient. This pipeline pump adopts high-quality mechanical seal
without leakage, which effectively reduces the oil and gas content of
the pump room, and improves the safety and reliability of the pump room
by taking care of the working environment. The suction pressure of the
oil pump is less than or equal to 1.0MPa, or the maximum working
pressure of the pump system is less than or equal to 1.6MPa, that is,
the pressure at the suction port of the pump + the pump head is less
than or equal to 1.6MPa, and the static pressure test pressure of the
pump is 2.5MPa. Please indicate the system working pressure when
ordering. When the working pressure of the pump system is greater than
1.6MPa, it should be specified separately when ordering, so that the
overcurrent part and the connecting part of the pump are made of cast
steel during manufacture.
Ambient temperature<40℃, relative humidity <95%.
YG type explosion-proof pipeline oil pump can work outdoors without building a pump room.
2. The vertical structure machine and pump are integrated, which occupies a small area and is easy to install.
3.
High-quality mechanical seal is adopted, and there is no leakage at the
shaft end, which improves the working environment and improves the
safety and reliability of the pump at high work.
4. The key
components are made of high-quality new materials, and the working
reliability and service life of the pump are improved according to the
corrosiveness and temperature requirements of the conveying medium.
5.
The EX explosion-proof motor with explosion-proof grade of dIIBT4 is
selected, which has excellent explosion-proof performance.
Voltage can be selected 220V explosion-proof 380V explosion-proof
YG Explosion-Proof pipeline pump series: Complete Technical Guide
Introduction
The YG Explosion-Proof Pipeline Pump Series is designed for safe, efficient fluid transfer in hazardous and industrial environments. Engineered with explosion-proof motors and robust pipeline integration, this series ensures stable performance while handling flammable, combustible, or volatile liquids.
These pumps are widely used in chemical processing, oil and gas, industrial pipelines, and hazardous material systems, offering energy-efficient operation, minimal maintenance, and long service life.
This guide covers daily maintenance, application fields, installation guidelines, and maintenance procedures, providing engineers, operators, and procurement professionals with detailed operational insight.
Key Features
Explosion-proof design: Motors and components comply with ATEX, IECEx, or equivalent safety standards.
Inline pipeline configuration: Saves installation space and simplifies integration.
Single-stage centrifugal operation: High efficiency for low-viscosity, non-corrosive, and hazardous fluids.
Durable materials: Stainless steel, cast iron, and corrosion-resistant alloys.
Low vibration and noise: Suitable for industrial environments.
Versatile applications: Chemical, oil, gas, and industrial fluid systems.
Technical Specifications
The YG series offers a wide range of flow rates, heads, and power configurations.
| Parameter | Range |
|---|
| Flow rate | 1.5 – 1200 m³/h |
| Head | 5 – 140 m |
| Power | 0.37 – 250 kW |
| Operating temperature | -20°C to +120°C |
| Operating pressure | ≤1.6 MPa |
| Materials | Cast iron, stainless steel, bronze |
| Seal type | Mechanical seal (single or double) |
| Installation | Inline, pipeline-mounted |
Motor Specifications
Explosion-proof motor types: Ex d, Ex e, Ex n, Ex p
Efficiency: IE2 or IE3 class
Protection: IP55 or higher
Voltage: 220–690V, 50/60 Hz
Application Fields
The YG Explosion-Proof Pump Series is suitable for diverse industrial applications:
Chemical processing plants: Safe transfer of flammable or corrosive chemicals.
Oil & gas pipelines: Fuel and solvent transportation.
Hazardous material handling: Transfer of volatile liquids in industrial pipelines.
Industrial water supply: High-pressure systems with safety compliance.
Fire protection in hazardous areas: Pumping for chemical or oil storage facilities.
Design Philosophy
The YG series combines safety, efficiency, and durability.
1. Explosion-Proof Safety
Motors comply with international standards for hazardous areas.
Housing and electrical components prevent sparks or overheating.
Suitable for Zone 1, Zone 2, or Class I Division 1/2 hazardous areas.
2. Inline Pipeline Design
Compact structure reduces floor space requirements.
Simplifies installation, inspection, and maintenance.
Integrates with existing pipelines without requiring additional fittings.
3. Durability and Reliability
High-quality materials resist corrosion and chemical attack.
Bearings and seals designed for long-term operation.
Mechanical seal options provide leak-proof performance in high-pressure systems.
4. Energy Efficiency
Installation Guidelines
Proper installation ensures safety, efficiency, and long service life.
Step-by-Step Installation
Prepare a rigid, vibration-free foundation.
Align pump and motor shaft precisely.
Connect suction and discharge pipelines, ensuring strainers are installed.
Install safety valves and monitoring devices as required.
Verify electrical connections comply with explosion-proof standards.
Ground the pump and motor system to prevent static buildup.
Note: Always follow manufacturer guidelines and local safety codes for hazardous areas.
Daily Maintenance
Daily maintenance ensures safe and continuous operation:
Visual inspection: Check for leaks, corrosion, or damage.
Noise and vibration monitoring: Abnormal sounds may indicate mechanical issues.
Motor monitoring: Verify current, voltage, and temperature.
Seal check: Ensure no leakage from mechanical seals.
Pipeline inspection: Remove debris or buildup in suction/discharge lines.
Routine Maintenance Schedule
| Task | Frequency | Notes |
|---|
| Visual inspection | Daily | Check for leaks, corrosion, or damage |
| Bearing lubrication | Every 3–6 months | Use manufacturer-approved lubricant |
| Mechanical seal inspection | Every 6–12 months | Replace worn or damaged seals |
| Impeller cleaning | Every 6 months | Prevent scaling and debris accumulation |
| Motor electrical test | Every 12 months | Insulation resistance and current check |
| Full system overhaul | Every 2–3 years | Replace critical components and inspect foundation |
Troubleshooting
| Problem | Possible Cause | Recommended Solution |
|---|
| Pump fails to start | Power supply issues, motor fault | Check wiring, inspect motor, reset overload |
| Low flow rate | Clogged suction, wrong pump size | Clean suction, verify design parameters |
| Excessive vibration | Shaft misalignment, unbalanced impeller | Realign shaft, balance impeller |
| Leakage | Worn mechanical seal | Replace seal, verify installation |
| Overheating | Bearing wear, overload | Replace bearings, reduce load |
Operational Tips
Ensure pump is fully primed before starting.
Avoid dry running, which may damage seals and impellers.
Maintain fluid quality to prevent cavitation or corrosion.
Gradually adjust valves to avoid hydraulic shocks.
Monitor energy consumption for optimization and maintenance planning.
Advantages of YG Explosion-Proof Pump Series
Explosion-proof motors ensure safe operation in hazardous environments.
Compact inline design simplifies pipeline integration.
Durable construction for chemical, oil, and gas applications.
Low noise and vibration suitable for industrial plants.
Energy-efficient operation reduces costs and environmental impact.
Flexible maintenance due to detachable components.
SEO-Optimized Product Description (Meta)
The YG Explosion-Proof Pipeline Pump Series is designed for safe, efficient fluid transfer in hazardous industrial environments. Featuring explosion-proof motors, durable construction, and inline pipeline integration, it is ideal for chemical processing, oil and gas, and industrial fluid systems. The YG series provides energy-efficient operation, low maintenance, and long service life while complying with international explosion-proof and safety standards.
Conclusion
The YG Explosion-Proof Pipeline Pump Series delivers safety, efficiency, and reliability for hazardous industrial applications. With daily maintenance, structured installation procedures, and scheduled upkeep, operators can ensure long-term performance and reduced downtime.
This guide provides engineers, facility managers, and buyers with a comprehensive overview of the YG series, covering technical specifications, application fields, maintenance protocols, and operational best practices, making it a trusted choice for industrial, chemical, and oil & gas pipelines worldwide.
